Load Testing Extra

Built-in performance testing capabilities for the worker component.

Extra Component

Adds a dedicated load_test queue with 50 concurrent jobs for performance testing.

What You Get

  • Dedicated load test queue - Isolated from production workloads
  • Performance benchmarking - CPU, I/O, and memory tests
  • CLI commands - Quick testing interface
  • API endpoints - Programmatic testing
  • Real-time dashboard - SSE-based live completion tracking (all backends)

Quick Usage

# CPU testing
full-stack load-test cpu --tasks 50

# I/O testing
full-stack load-test io --tasks 100

# Memory testing
full-stack load-test memory --tasks 200

# View results
full-stack load-test results <task_id>

See It In Action

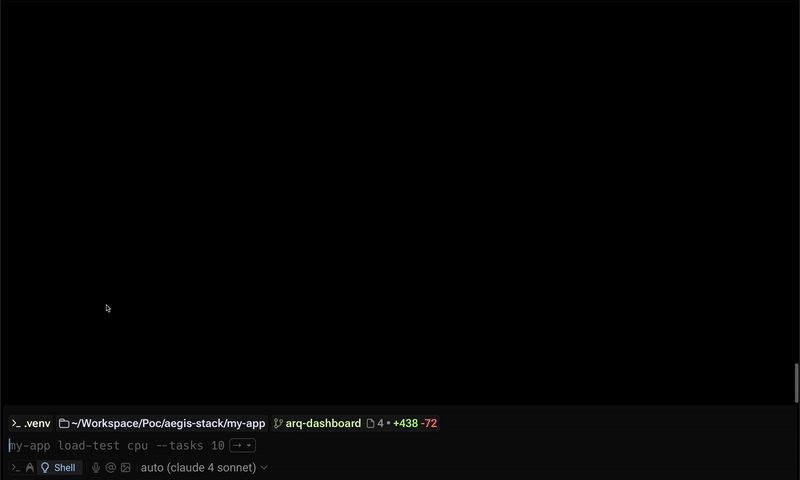

Load Testing Demo

About This Demo

This GIF shows CPU-intensive tasks being processed. Since CPU tasks don't run async by default, you'll notice the recommendation to increase worker count for better throughput.

Had we run I/O or memory tests instead, they would demonstrate much faster async processing with fewer workers needed.

Architecture

The load testing extra adds one additional queue:

Queue Concurrency Purpose
load_test 50 jobs Performance testing and benchmarking

Isolation Required

Never use the load_test queue for production tasks.

Running Workers

# Standard arq command
arq app.components.worker.queues.load_test.WorkerSettings

# With Docker
docker compose up worker-load-test

# Run both system and load_test queues together
dramatiq app.components.worker.broker \
  app.components.worker.queues.system \
  app.components.worker.queues.load_test \
  --queues system load_test

# With Docker
docker compose up worker

Dramatiq queue isolation

Specify --queues load_test to run a worker that processes only load test tasks, keeping CPU-intensive benchmark work away from your system queue.

taskiq worker app.components.worker.queues.load_test:broker

Orchestrator Pattern

Each backend uses an orchestrator to enqueue load test tasks in batches. A Redis lock prevents concurrent load tests (aegis:load_test:lock with 10-minute TTL).

The arq orchestrator enqueues tasks via the standard pool interface:

async def run_load_test(task_type: str, task_count: int) -> dict:
    """Enqueue load test tasks via arq pool."""
    pool, queue_name = await get_queue_pool("load_test")
    try:
        job_ids = []
        for _ in range(task_count):
            job = await pool.enqueue_job(
                f"{task_type}_task", _queue_name=queue_name
            )
            job_ids.append(job.job_id)
        return {"status": "enqueued", "task_count": task_count, "job_ids": job_ids}
    finally:
        await pool.aclose()

Dramatiq uses a fire-and-forget orchestrator actor. The orchestrator enqueues all individual tasks and returns immediately — it does not wait for them to complete:

@dramatiq.actor(queue_name="load_test", store_results=True)
async def run_load_test_orchestrator(task_type: str, task_count: int) -> dict:
    """Enqueue load test tasks and return immediately."""
    messages = []
    for _ in range(task_count):
        if task_type == "io":
            msg = await asyncio.to_thread(io_simulation_task.send)
        elif task_type == "cpu":
            msg = await asyncio.to_thread(cpu_intensive_task.send)
        messages.append(msg.message_id)

    return {
        "status": "enqueued",
        "task_count": task_count,
        "message_ids": messages,
    }

Note the asyncio.to_thread wrapper — Dramatiq's .send() is a synchronous Redis LPUSH.

The TaskIQ orchestrator is itself a task that spawns individual tasks via .kiq() in batches:

@broker.task
async def load_test_orchestrator(
    num_tasks: int = 100,
    task_type: str = "io",
    batch_size: int = 10,
) -> dict:
    """Enqueue load test tasks in batches."""
    task_func = _get_task_by_type(task_type)
    task_handles = []

    for batch_start in range(0, num_tasks, batch_size):
        batch_end = min(batch_start + batch_size, num_tasks)
        for _ in range(batch_end - batch_start):
            handle = await task_func.kiq()
            task_handles.append(handle)

    return {
        "status": "enqueued",
        "task_count": num_tasks,
        "task_ids": [str(h.task_id) for h in task_handles[:10]],
    }

TaskIQ's .kiq() is already async, so no thread wrapping is needed.

The dashboard SSE stream shows real-time completion as individual tasks finish, regardless of which backend is used.

Test Types

  • CPU: Fibonacci calculations, computational work
  • I/O: Simulated network delays, async operations
  • Memory: Large data structures, allocation patterns

Dashboard SSE Monitoring

All backends publish task lifecycle events to Redis Streams via EventPublishMiddleware. The dashboard subscribes to these events via Server-Sent Events (SSE) and displays real-time completion:

  • Tasks enqueued shows immediately in the queue depth counter
  • Completions decrement the counter in real time
  • Failed tasks are highlighted separately
  • The load test panel shows throughput and failure rate as results arrive

This works identically across arq, TaskIQ, and Dramatiq backends.

Results

Tests return performance metrics and analysis:

{
  "throughput": 22.03,
  "failure_rate_percent": 0.2,
  "performance_rating": "good",
  "recommendations": ["Consider increasing batch size"]
}

Best Practices

  • Start with 100 tasks and scale up
  • Monitor resources during tests
  • Use dedicated load_test queue only
  • Document baseline performance
  • Use the Redis lock to prevent concurrent tests in automated pipelines
